Description
Fundo Linear

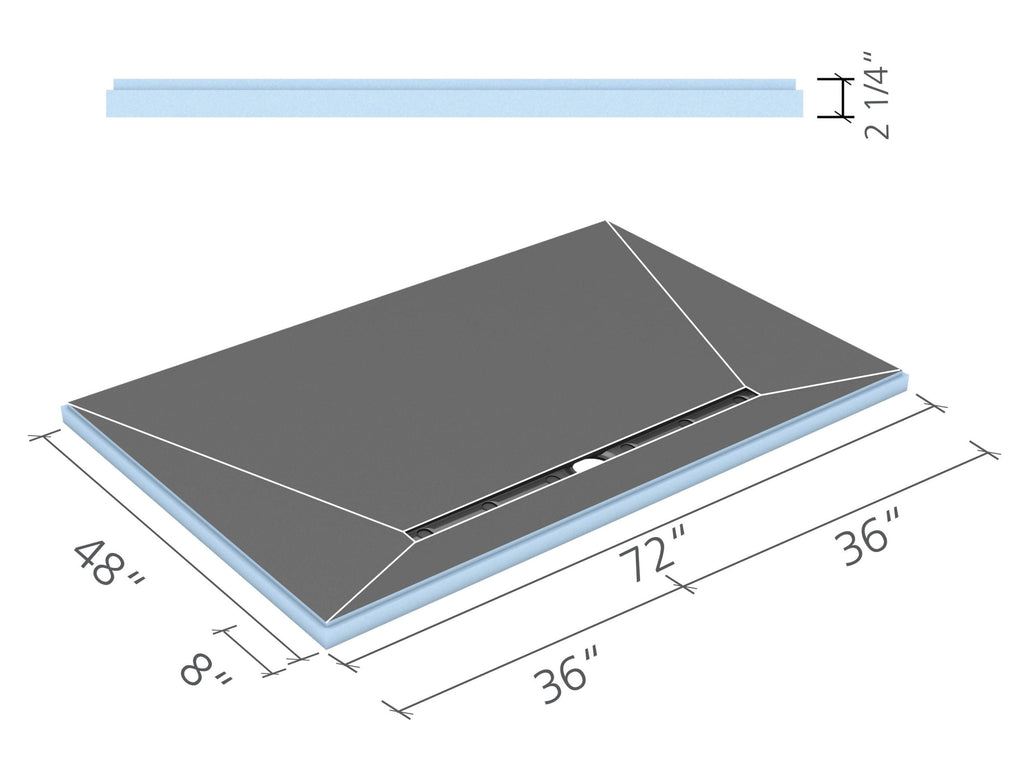

These presloped and waterproof shower bases come with an integrated linear drain channel and wedi® Fundo Click and Seal® Drain unit. You can select one of our linear wedi Premium drain cover options to fit the preferred design.
Key features:
-
Linear Shower base: single piece base featuring a 4-way slope design and level perimeter for safe recessing into a subfloor construction.
-
Linear Shower Module consists of two components: line drain module and extension module, featuring a one-way slope with close to wall drain placement.
Here is how you select the right shower base size to fit the job in most cases:
-
Determine the distance between the center of the 2-inch pipe in the subfloor to all framed walls and where you plan to have the inside of a wedi curb (as if it were another framed wall).
-
Take note of the longest dimension of the two distances measured along each axis (east/west and north/south.)
-
Select a shower base that covers 2x the length of the longest dimensions along each axis.
-
This will ensure that the shower base will cover the entire shower area and, if needed, can be trimmed on site to position the integrated wedi drain over the 2-inch wastepipe in the subfloor.
-
This method of calculating the correct shower base works for square and rectangular spaces with a mostly centered drain location. Where drains are very close to a wall, one of wedi’s off-center drain bases should be used, if possible.
Refer to our Technical Drawings section to select the correct base that covers your shower dimensions, and will properly align the integrated wedi drain with the floor drain pipe.
